Dump Trucks

Available in Hardox® steel, aluminum and stainless steel. Contact Falcon for current body configurations.

Request a Quote

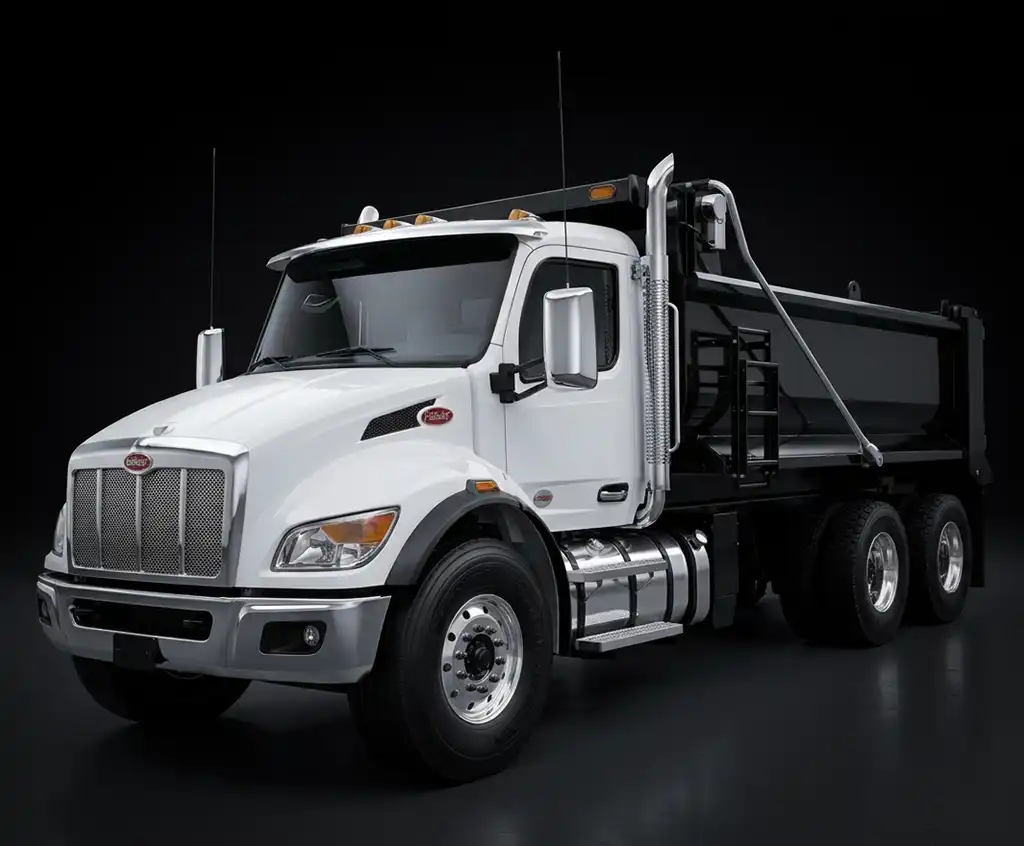

Illustrative FDT-HD configuration
Illustrative configuration. Falcon confirms the final build.

FDT-HD

The Steel FDT-HD Series is one of Falcon’s three dump body series. Ask Falcon which duty class, material and capacity it is built to for your truck.

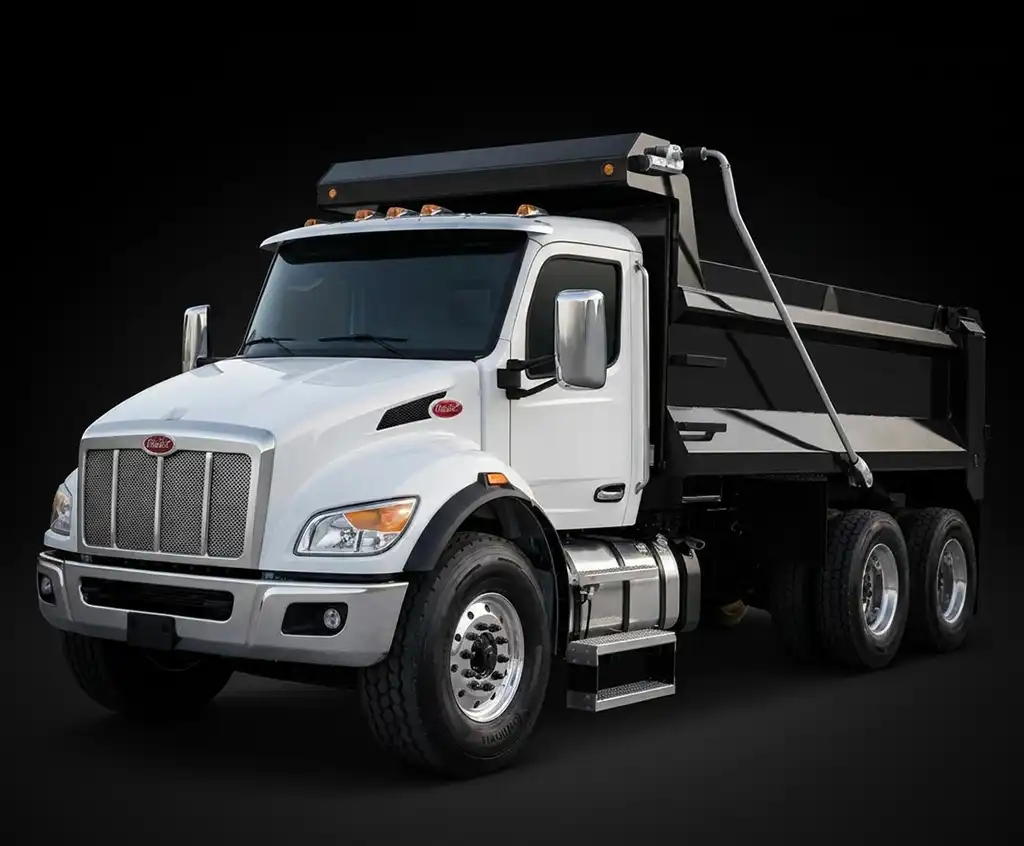

Illustrative FDT-M configuration
Illustrative configuration. Falcon confirms the final build.

FDT-M

The Steel FDT-M Series is one of Falcon’s three dump body series. Ask Falcon which duty class, material and capacity it is built to for your truck.

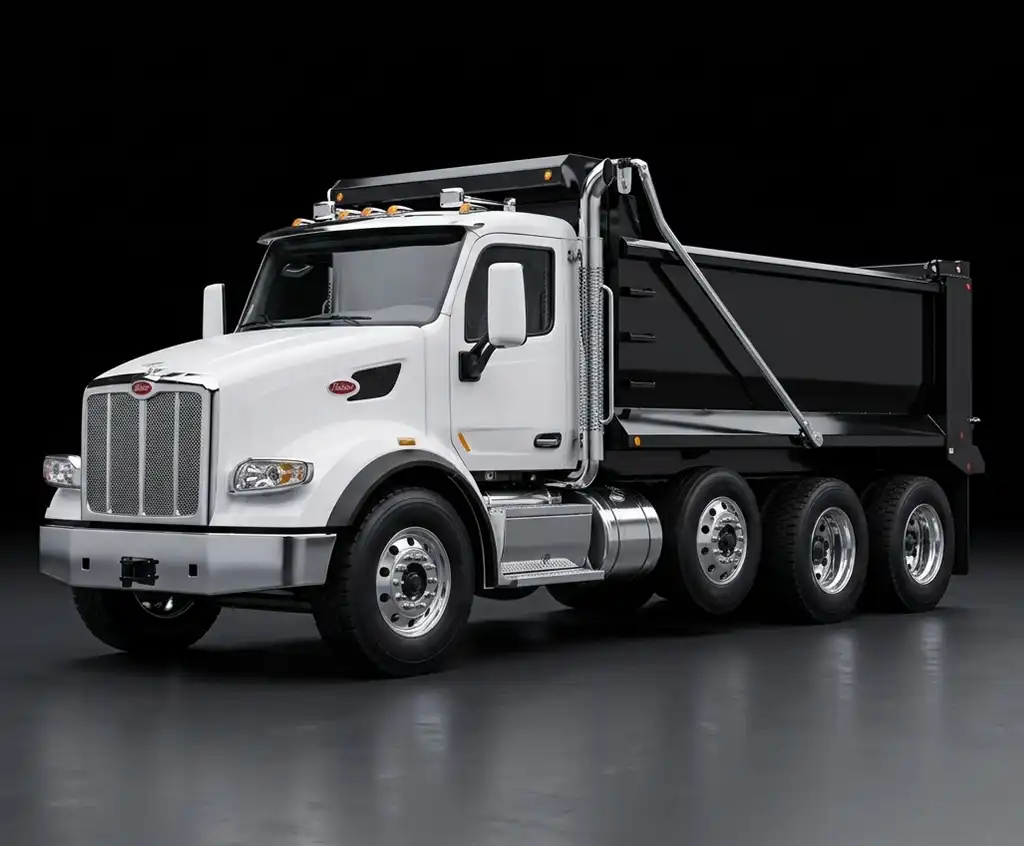

Illustrative FDT-XC configuration
Illustrative configuration. Falcon confirms the final build.

FDT-XC

The Steel FDT-XC Series is one of Falcon’s three dump body series. Ask Falcon which duty class, material and capacity it is built to for your truck.

Three duty classes.

From Falcon’s dump body specification sheet. Ask Falcon which FDT series matches the class you need.

ClassTypical capacityBody styleMaterialSide heightHoistDump angle
11' Box Dump5-7 cu. yd.Square boxHigh-strength carbon steel24 in. - 36 in. + board pocketsScissor or telescopic50 degrees
14' Heavy Duty12-14 cu. yd.Elliptical1/4 in. AR450 steel48 in. - 54 in.Front-mount telescopic45-50 degrees
16' Extreme Duty18-23 cu. yd.Elliptical1/4 in. AR450 steel throughout floor, sides and tailgate62 in. - 66 in.Front-mount telescopic45-50 degrees

Standard on every unit.

In-cab air-operated hoist and tailgate controls

Recessed LED lighting (FMVSS 108) with rubber grommets

High-decibel backup alarms

Body prop safety support struts

Body-up indicators

Manual or electric tarp system

Questions.

Call (888) 421-4150 for model-specific details.

What specifications are listed?

This page lists only the figures Falcon has confirmed. Ask Falcon for current dimensions, materials and equipment for the configuration you need.

Can Falcon help with a fleet order?

Falcon works with a nationwide network of dealers, distributors and upfitters. Share your chassis, body, quantity and configuration requirements to discuss a repeatable fleet specification.

Quote this build.

Share the chassis, the model and the configuration. Falcon confirms fit and current equipment.
